 Slide Faces

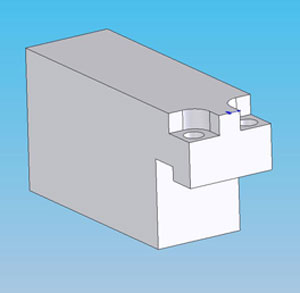

          Versa-Slide Face SL-20 Series


Versa-Slide Faces are designed to fit various OMNI Mold Systems Versa-Slides�. Made of P-20 material and finish machined for the SL-10 & SL-20 Series slides, these slide faces are ready to add your molding geometry or core pin holes. Just attach to your OMNI Versa-Slide� and you are ready to go.
Cam Action Molds


OMNI Mold Systems� developed the Versa-Slides� to compliment our standard mold bases. Designed around our standard pockets, they are a perfect fit in our, �Off the shelf� mold bases. They are also very versatile, and are easily brought into any custom design.

· P-20 Material
· Finish Machined
· In stock for same day shipment
· Helps reduce lead times


To Download Files:
1) Select a file type
(i.e. DXF, DWG, PRT, IGES)
2) Click on a CAD file name


OVERALL
WIDTH (W/STOCK)
SLIDE THICKNESS (W/STOCK)
FITS SLIDE
CATALOG NUMBER
PRICE
as of 2/12
CAD FILE NAME
DOWNLOAD
FILE AS:
None
STP
X_T
.625
0.460
SL-20-10
SLF20101
$93.00
SLF20101
.625
.960
SL-20-20
SLF20102
$106.00
SLF20102
.625
1.460 SL-20-30
SLF20103
$109.00
SLF20103
